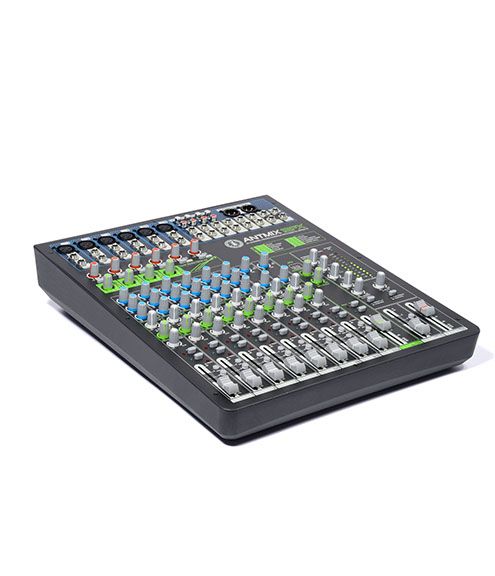

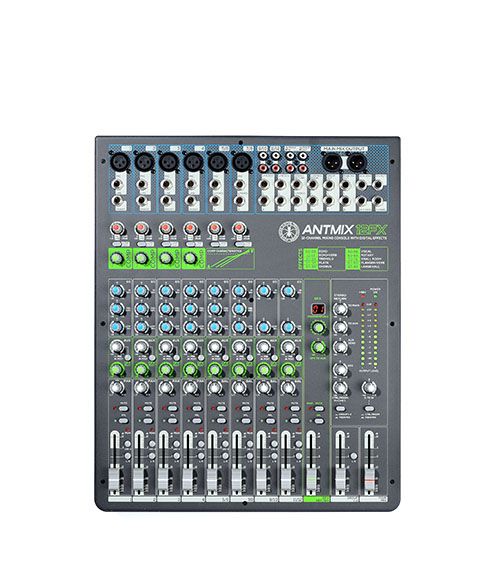

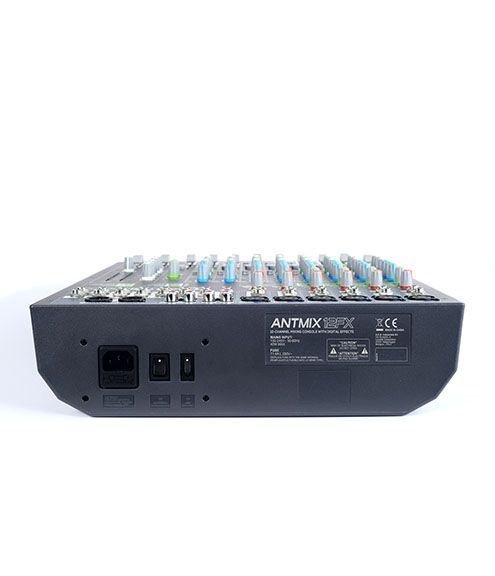

AntMix 12FX

Beschreibung

• 12 Kanäle (4 x Mono Mic/Line: XLR/TRS + Insert, 2 x Mic/Line: XLR
• Mono/6,3mm Klinke Stereo, 2 x Stereo: RCA/Klinke
• Kompressoren auf Kanal 1 bis 8
• Stereo Subgruppe + Pre/Post schaltbarer Aux-/Monitorweg
• Alle Kanäle separat PFL und Mute schaltbar
• 48V Phantomspeisung auf Kanal 1 bis 8 (XLR)
• 99 Digitale Effekte integriert (u.a. Hall, Delays, Plate, Tremolo, Chorus und
• Flanger), über Fußschalter (Klinke) mutebar
• Dedizierter Effektausgang (TRS Klinke)
• Master Sektion mit Output Level LEDs, 2-TK Send und regelbarem
• 2-TK Return
• Ausgänge: Main-Mix (XLR + TRS Klinke), Group-Out (TRS Klinke),
• Control-Room (TRS Klinke), Phones (6,3mm Stereoklinke), Effektout (TRS
• Klinke), 2TK-Out (RCA), Aux-Send (TRS Klinke)
• 340 mm x 100 mm x 416 mm (Breite, Höhe, Tiefe), 3,53 Kg

•    ConnectorBalanced XLR
•    Impedance1.8 kΩ
•    Frequency response20~20kHz +/-1dB
•    Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
•    Gain 0~55dB
•    Max input +15dB (balanced)
•    Low-cut 75Hz 12dB/oct.
•    Signal-to-noise ratio <-100 dBr A weighted
•    Phantom powering +48V

•    Connector Balanced 6,35mm (1/4”) – unbalanced RCA
•    Impedance 10 kΩ
•    Frequency response 20~20kHz +/-1dB
•    Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
•    Gain +15dB~-35dB
•    Signal-to-noise ratio <-100 dBr weighted A

•    Compressor <7br> only for channels featuring this control)Gain: 0 —> 9 dB | Soglia: 20 dB —> 5 dB
•    Hum & noise < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
•    Crosstalk < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)

•    Mono & mono/stereo channels+/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5  kHz+/- 15 dB @80 Hz
•    Stereo channels+/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz

•   Connector2 x unbalanced RCA
•   Impedance10 kΩ
•   Frequency response20~20kHz +/-1dB
•   Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
•  GainOFF~+15dB

•   Connector2 x balanced 6,35mm (1/4”)
•   Impedance10 kΩ
•   Frequency response20~20kHz +/-1dB
•   Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted
•   GainOFF~+15dB

•    A/D – D/A converters24 bit
•    Number of e ects16 for 6FX – 100 for 8Fx and 12FX
•    ControlsPresets rotary selector – 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector – 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)

•    MAIN MIX connectors2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
•    MAIN MIX max output level+22 dBu XLR balanced (+16 dBu unbalanced)
•    MAIN MIX output impedance120 Ω
•    GR1-2 in connectors (12FX only)2 x TRS balanced 6,35mm (1/4”)
•    GR1-2 max output level (12FX only)+22 dBu XLR balanced (+16 dBu unbalanced)
•    GR1-2 output impedance (12FX only)120 Ω
•    Headphones connectorUnbalanced TRS 6,35mm (1/4”)
•    Headphones impedance30 Ω
•    Control room connectors2 x balanced TRS 6,35mm (1/4”)
•    Control room impedance120 Ω
•    2-TK connectors2 x unbalanced RCA
•    2-TK impedance1 kΩ
