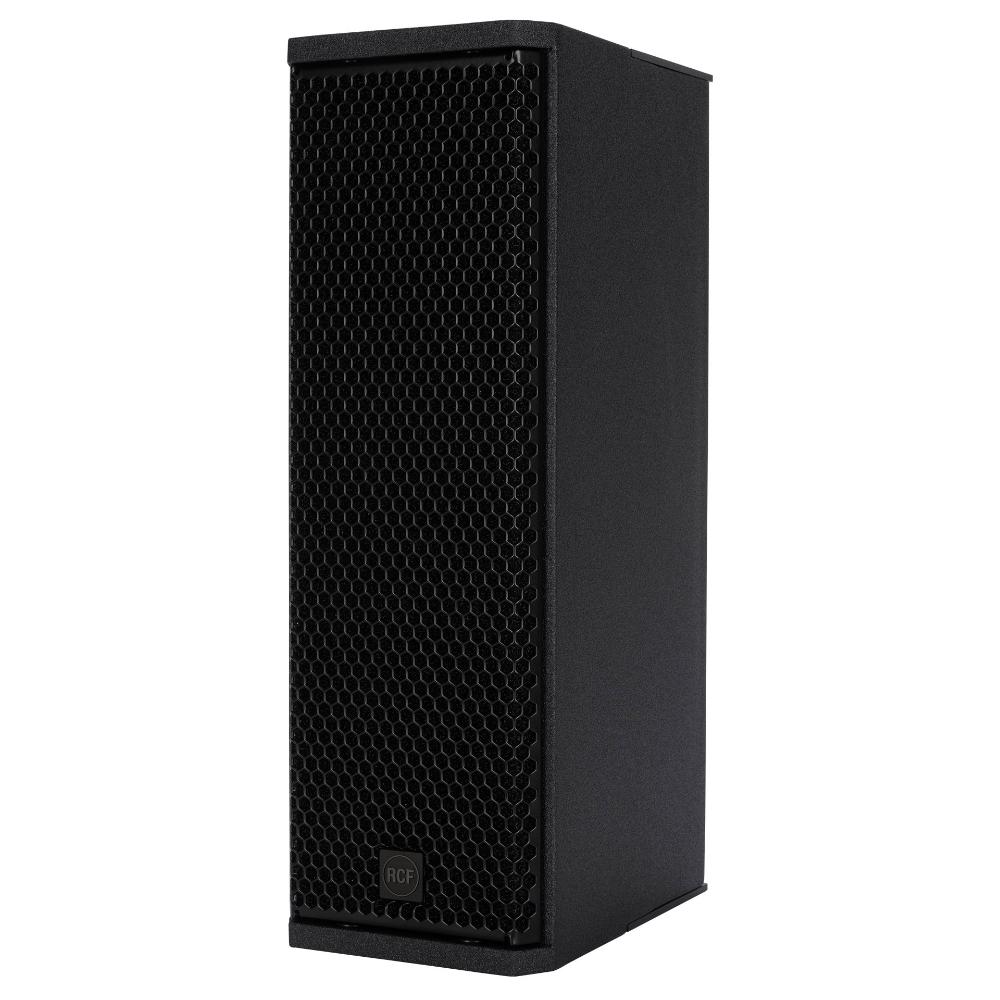

RCF KX 515 A

  • 127 dB max SPL
  • Rotatable 100° x 70° CMD horn
  • LF 2 x 5” neodymium woofer, 2” voice coil
  • HF 1.75” titanium dome, neodymium comp. driver
  • 2 x Class-D amplifiers, 2000 Watts total power
  • DSP Processing with FiRPHASE and BMC
  • RDNet Networked Management
  • powerCON TRUE1 TOP mains connectors

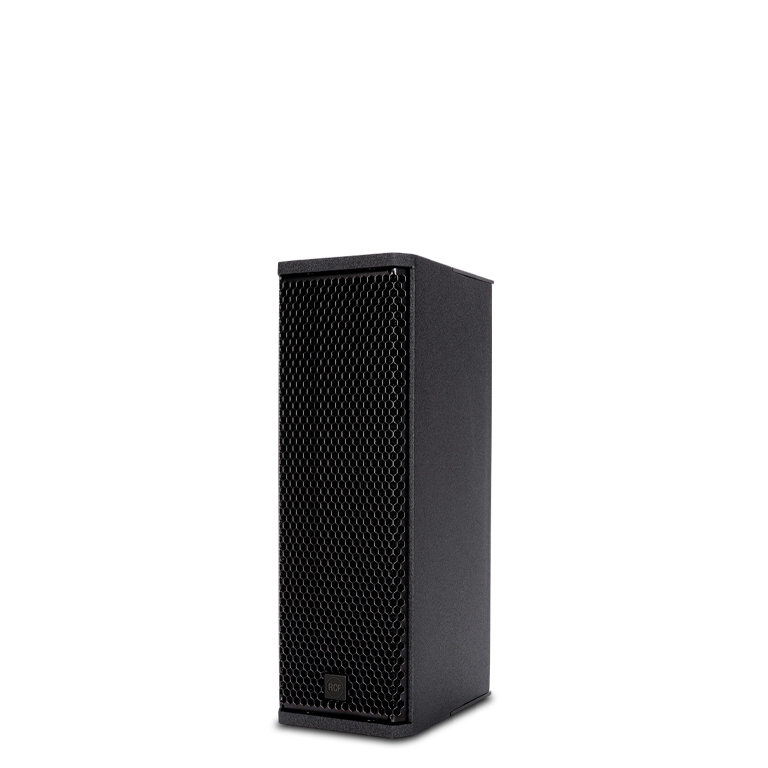

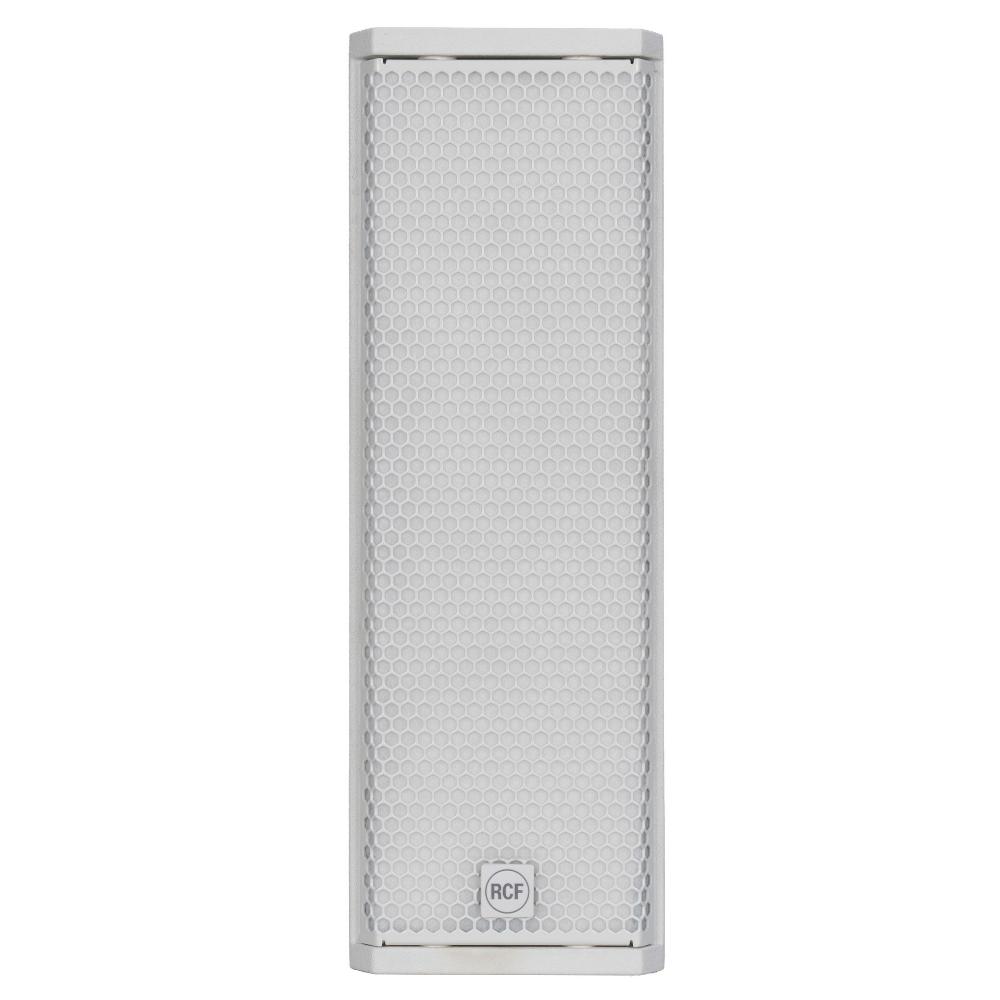

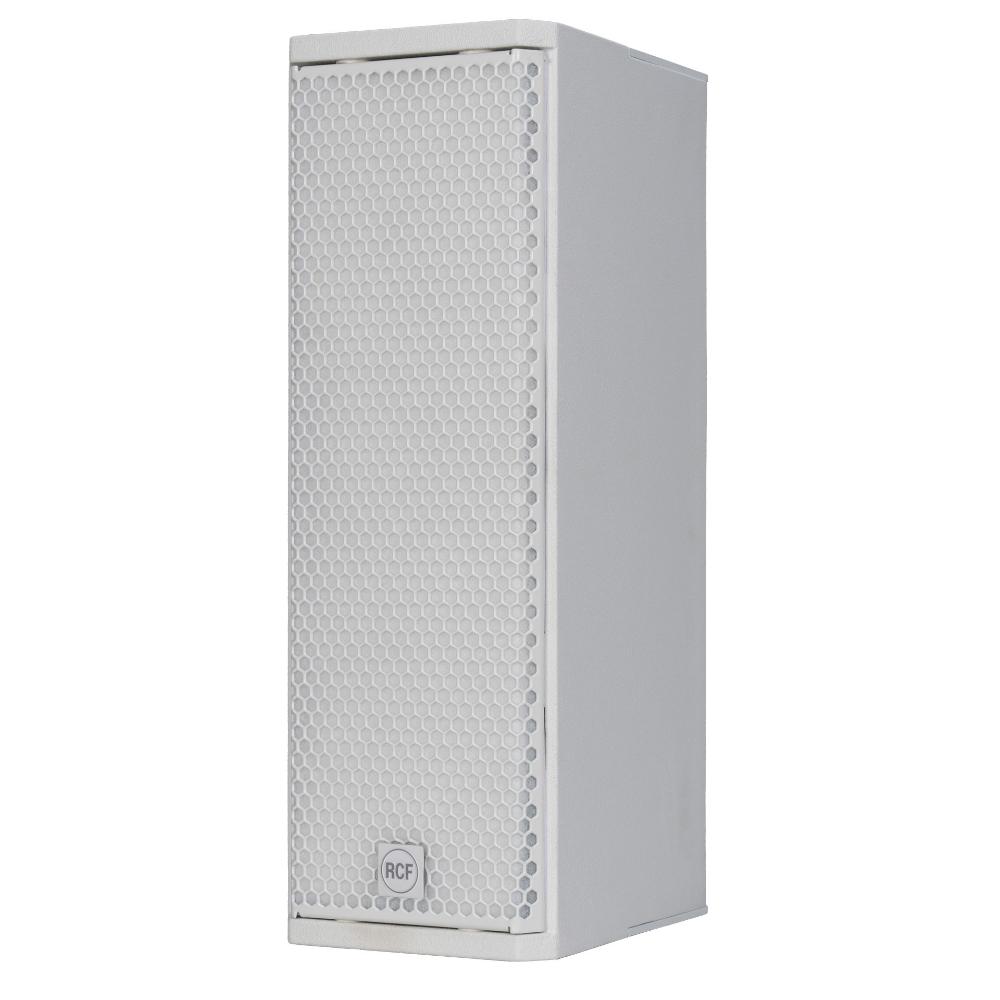

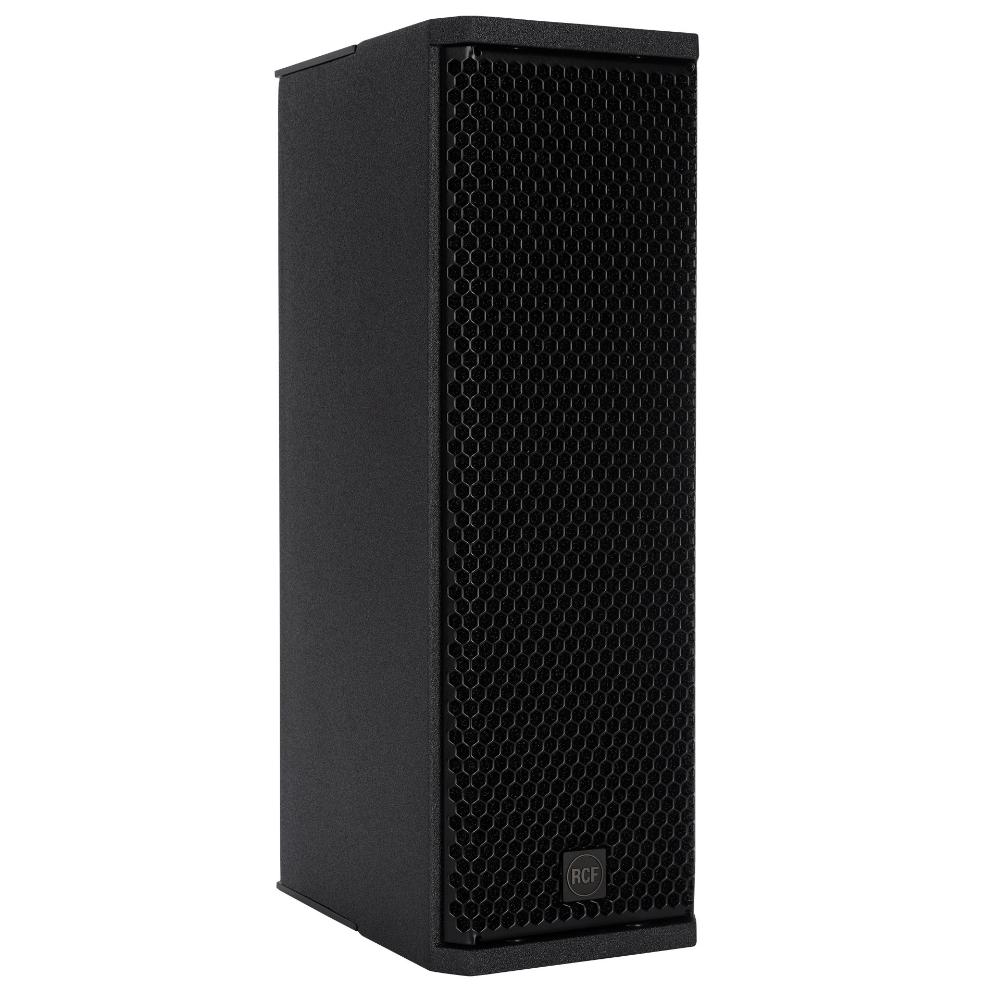

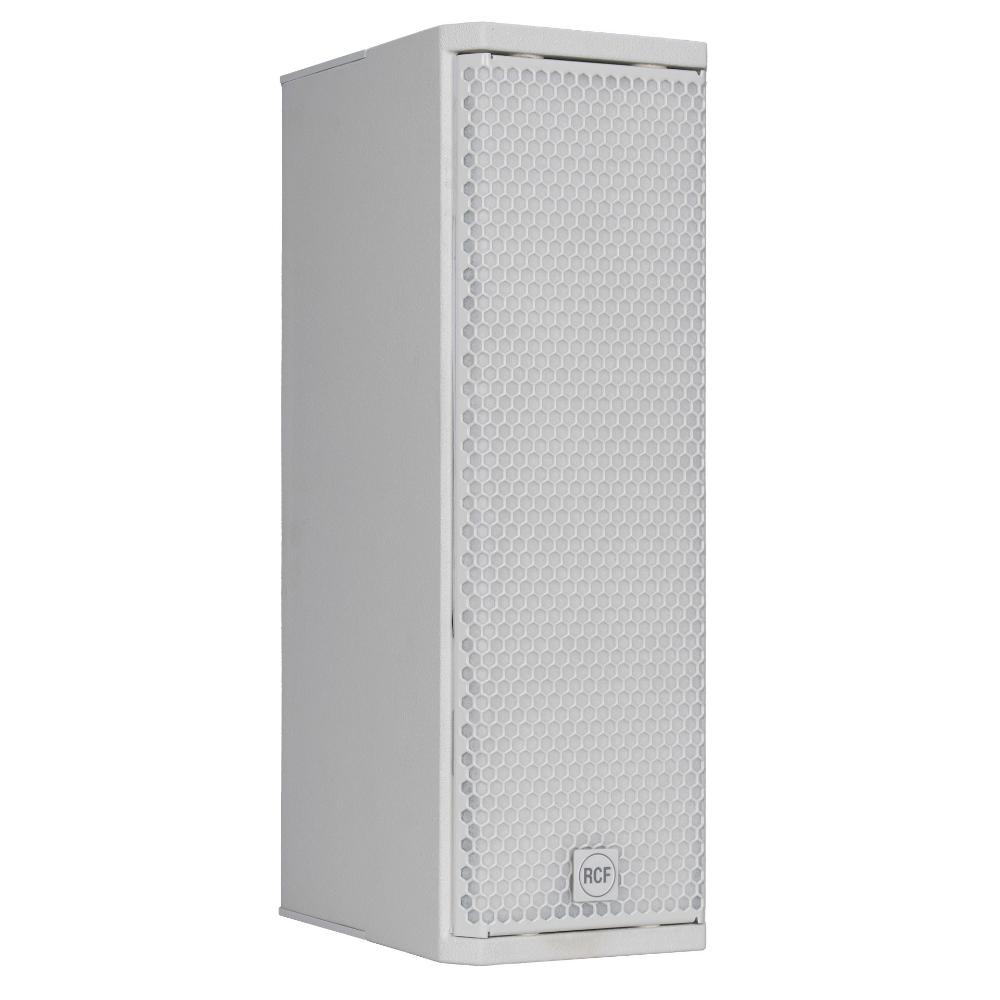

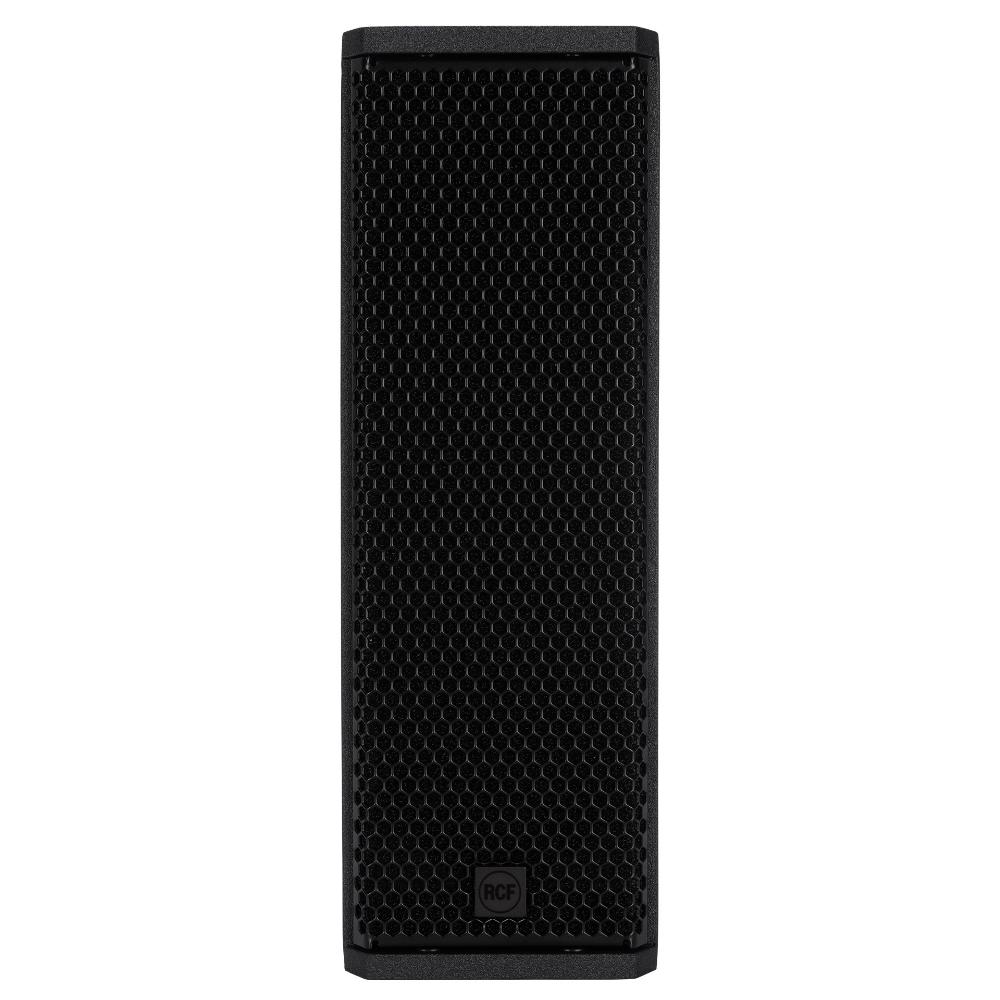

  • Available in full black or white coating

Dieses Produkt ist derzeit ausverkauft und nicht verfügbar.

Beschreibung

Flexibility, power, and compactness make the KX 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of RCF technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, KX 515-A is quick to deploy and fast to tune.

Zusätzliche Informationen

Gewicht 9,8 kg
Größe 45,6 × 15,4 × 23,7 cm
Frequenzgang:

70 Hz ÷ 20000 Hz

Max SPL @ 1m:

127 dB

Horizontaler Abstrahlwinkel:

100°

Vertikaler Abstrahlwinkel:

70°

Kompressionstreiber:

1 x 1.0'' neo, 1.75'' v.c

Woofer:

2 x 5.0'' neo, 2.0'' v.c

Eingangssinal:

bal/unbal

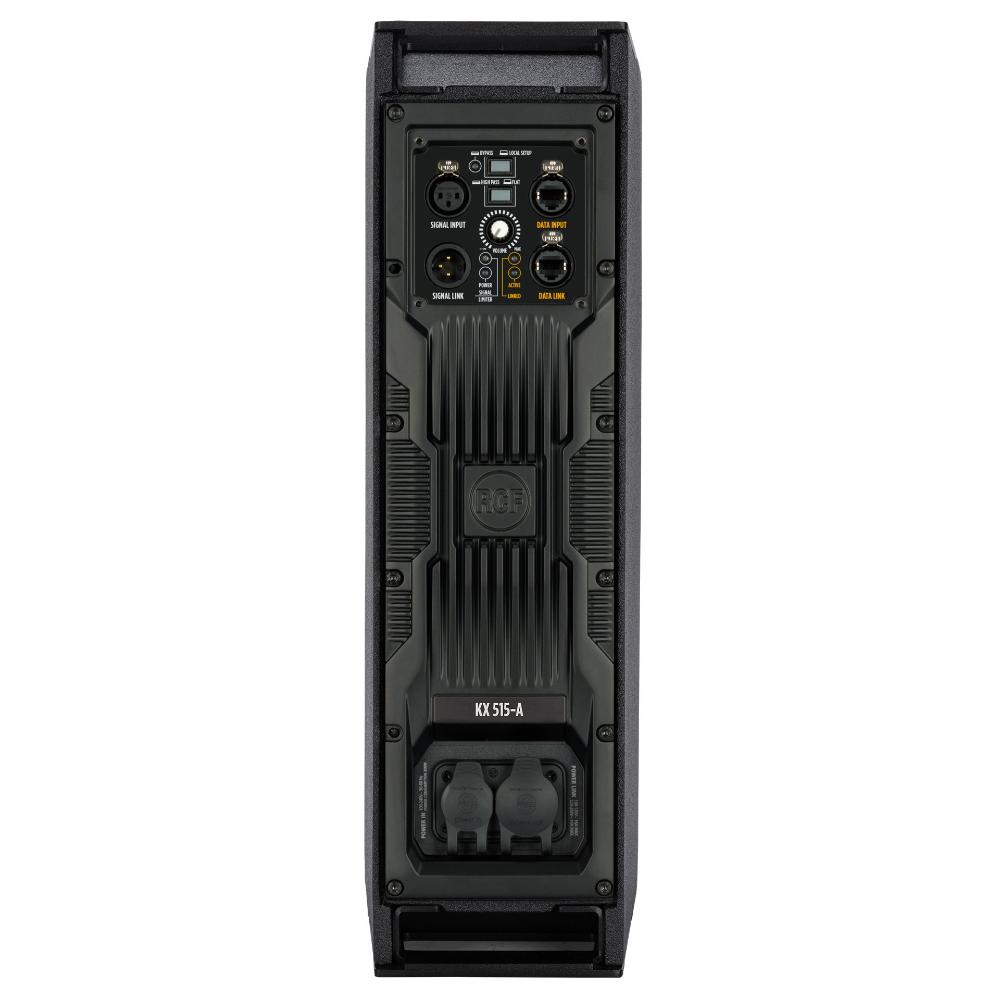

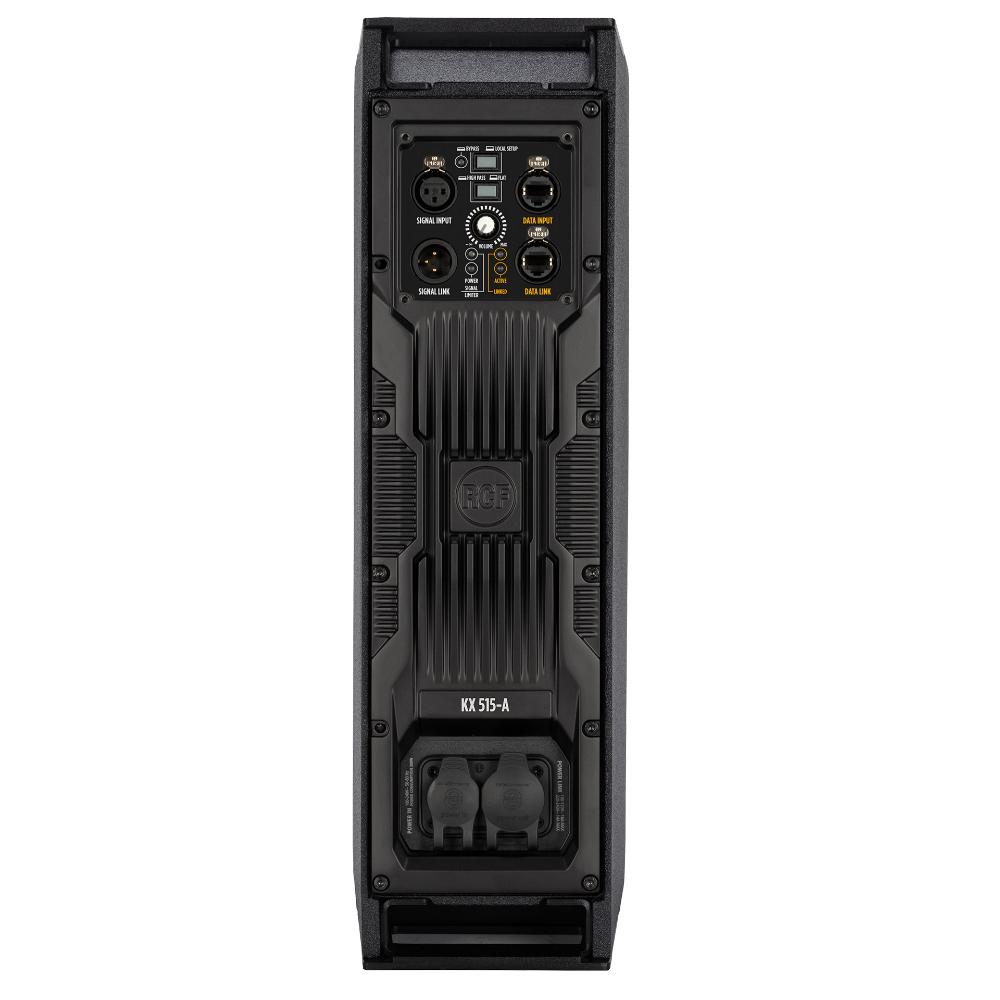

Eingangsbuchsen:

XLR, RDNet Ethercon

Ausgangsanschlüsse:

XLR, RDNet Ethercon

Eingangsempfindlichkeit:

-2 dBu, +4 dBu

Übergangsfrequenz:

1200 Hz

Schutzschaltungen:

Excurs.

Limiter:

Fast Limiter

Steuerung:

Volume, Bypass, Linear/High Pass

RDNet:

Ja

Gesamtleistung:

2000 W Peak

HF Bereich:

600 W Peak

Tiefe Frequenzen:

1400 W Peak

Kühlung:

Konvektion

Verbindungen:

Powercon TRUE1 TOP IN/OUT

Farbe:

Schwarz, Weiß
